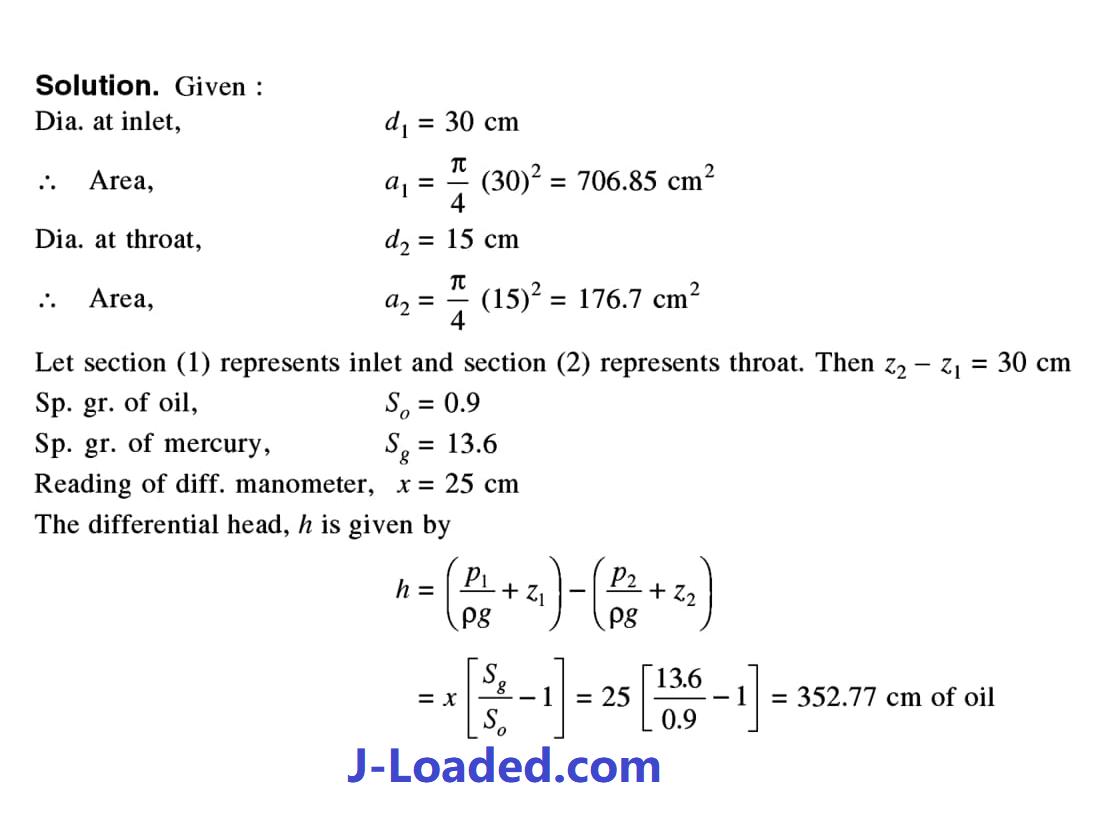

Solution

Data


A 30 cm x 15 cm venturimeter is provided in a vertical pipe line carrying oil of specific gravity 0.9, the flow being upwards. the difference in elevation of the throat section and entrance section of the venturimeter is 30 cm. the differential U-tube mercury manometer shows a gauge deflection of 25 cm calculate:
